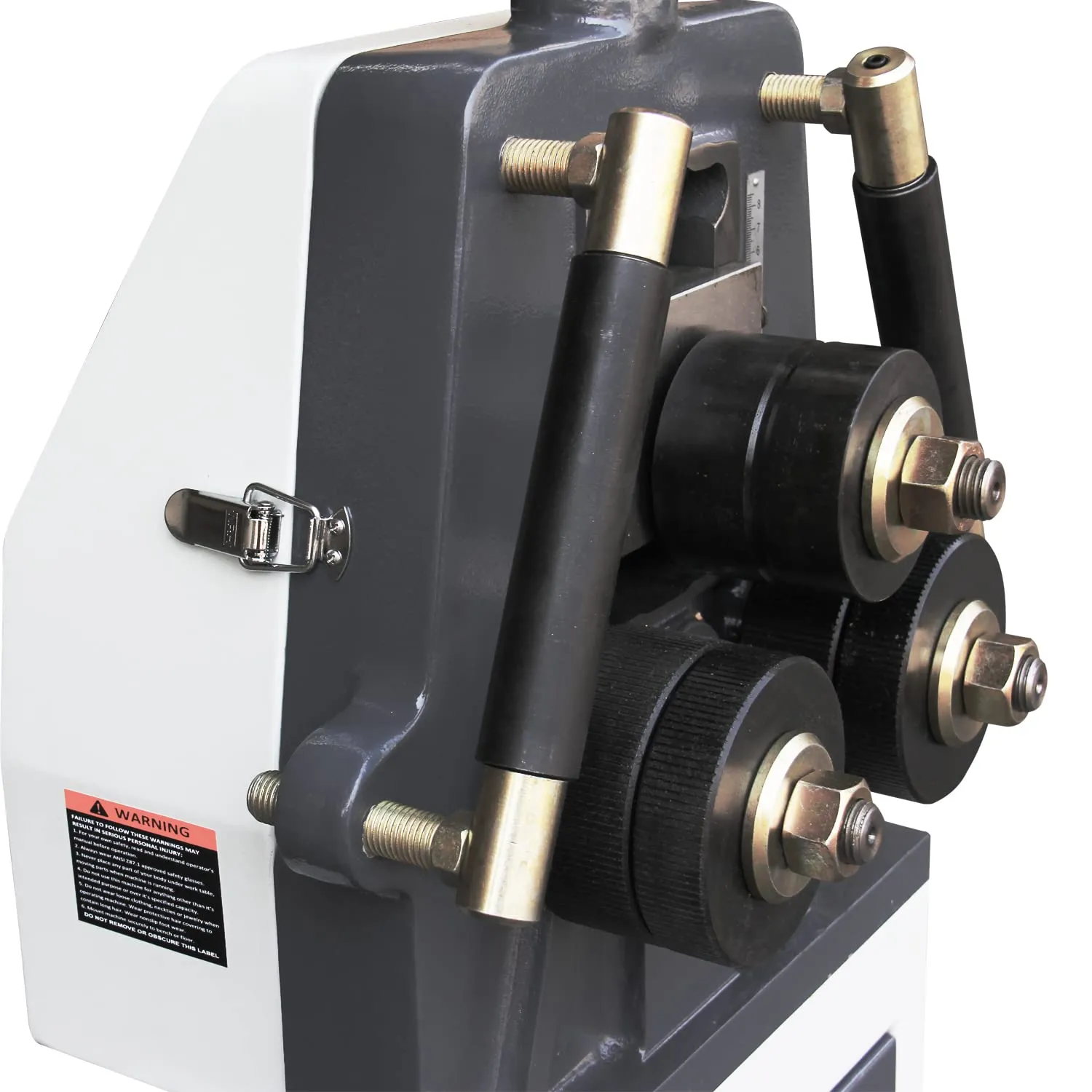

KANG Industrial Manual Section Rolling Machine RBM-10
Manual roll bender, gear driven
Features
Hardened rolls, 30mm heat-treated drive shaft
Cast iron body, open-face design to make a full circle.
Standard rolls max. roll 50x10 mm flat bar
Bottom rolls are knurled for additional grip on the material
Optional dies for different round tubes, up to 31.75 mm OD.
Specifications
| SKU | 191005 |
| Model | RBM10 |
| Dia. of roller | 30 mm |
| Packing size | 50x48x68 cm (body) 59x35x86 cm (stand) |
| N.W./G.W. | 158/175 kg |
Working capacity of the standard rollers
| Section | Size (mm) | Min. Dia (mm) |
| Flat bar hard way | 20x5 30x10 | 190 500 |
| Flat bar easy way | 20x5 50x10 | 160 400 |
| Square bar | 10x10 20x20 | 160 500 |
!! Please Note !!
1. The following chart is Regional Australia, if your location belongs to one of them will have extra cost for the freight, please contact us for the extra freight cost payment!
| State | Postal code |
| QLD | 2372，2460-2484，2486-2490，4300-4449，4550-4699，9597-9799，4450-4499，4700-4899，9920-9999 |
| SA | 2888，5200-5749 |
| WA | 6215-6797 |
| TAS | 7155-7999 |
| NT | 0800-0887 |
2. Standard freight charges do NOT include lifting off (unloading) from transport delivery vehicles where the total weight of goods exceeds 50kg, If you are unable to provide appropriate lifting please contact us for a quote on delivery that includes unloading.
